Needle vs. Cylindrical Rollers: Which is Better for Linear Bearings?

You may be aware with rotary needle roller bearings, which are widely utilised in automotive and industrial power transmission applications because to their compact size and great load carrying capacity. But did you know that certain linear bearings employ needle rollers?



Linear bearings were initially used in non-recirculating linear guides, but manufacturers have lately produced recirculating contoured rail guides with needle roller bearings to suit the ever-increasing demands for stiffness and smoothness of movement.

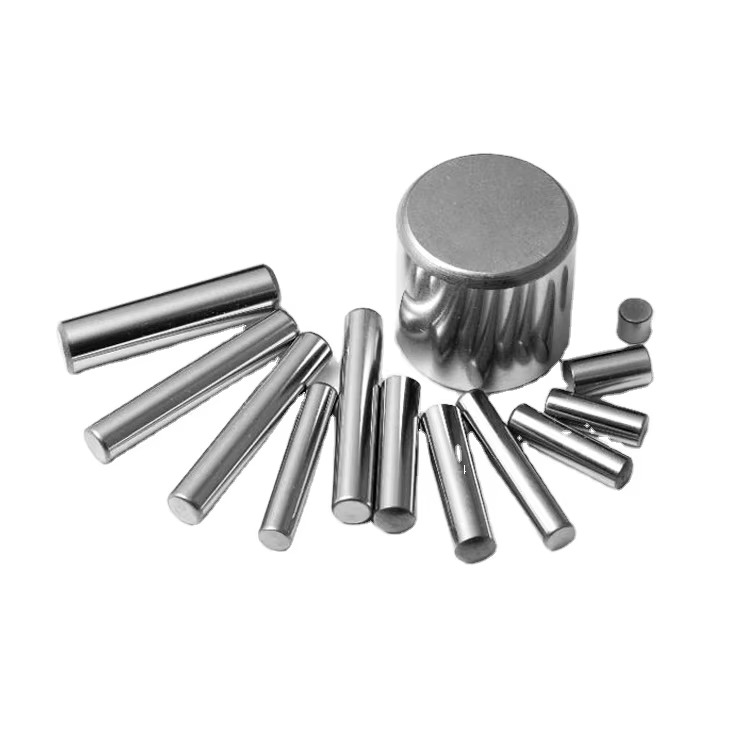

How are needle rollers different from Cylindrical Needle Rollers?

The length-to-diameter ratio of cylindrical rollers distinguishes them from needle rollers. To qualify as a needle roller, the roller's length must be at least three times its diameter. In actuality, needle rollers can have length-to-diameter ratios ranging from 3:1 to 10:1, whereas cylindrical rollers have ratios smaller than 3:1.

The typical load-carrying components of linear bearings, both recirculating and non-recirculating, are balls or cylindrical rollers, both of which give high load capacity, minimal friction, and strong stiffness for linear motion applications. However, as cylindrical rollers provide a "step up" in performance above balls, particularly in terms of load capacity and stiffness, needle rollers outperform cylindrical rollers in several ways.

One of the primary reasons for employing needle rollers in radial bearings is their small size; nevertheless, in linear bearings, the primary advantages of needle rollers over balls or Cylindrical Needle Rollers China are higher load capacities and greater stiffness. This is because needle rollers spread the load among more, smaller rollers, each of which has a bigger contact area than a cylindrical roller. This lessens the pressure per roller, allowing the bearing to withstand greater loads.



Needle rollers give smoother motion in two ways when used with recirculating profiled rail bearings. First, needle rollers have greater dynamic friction than balls or cylindrical rollers from Cylindrical Needle Rollers Supplier. Although higher running friction is a disadvantage in some applications, it can be advantageous in high-load, high-rigidity linear guides because it dampens vibrations caused by external forces. And, as the load is distributed over more, smaller rollers, the vertical pulsation of the bearing generated by roller motion is decreased.

Location: Ningyang County, Taian, China, 271405
